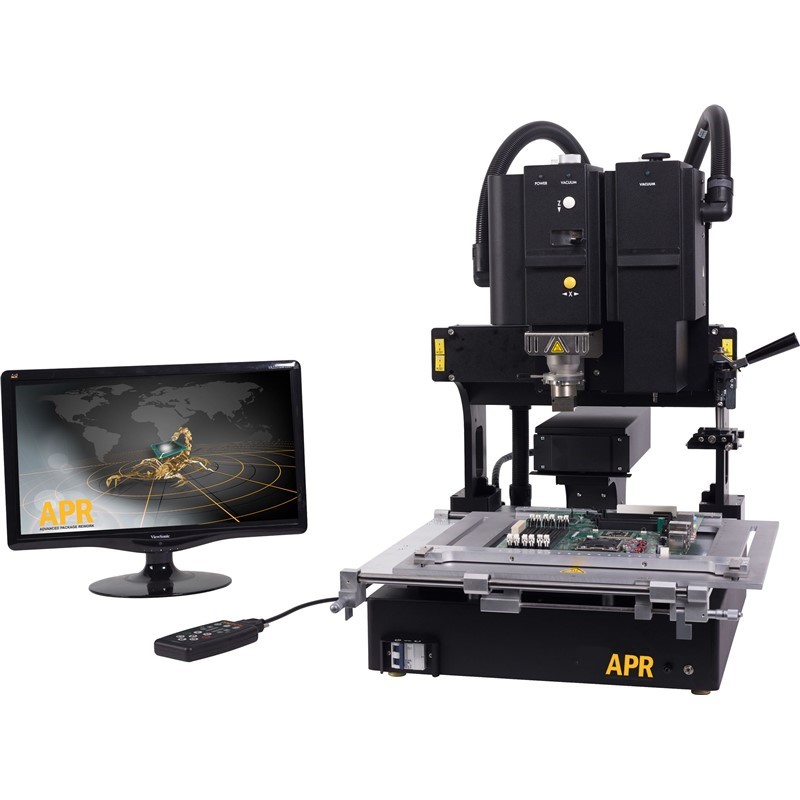

SCORPION REWORK SYSTEM, WITH MOTORIZED PLACEMENT HEAD, FOR HIGH DENSITY BOARDS

Contact APR Customer Service to schedule an online demo of the Scorpion Rework System

• SMD Rework System
  Desolders, places and solders many types of surface mounted devices including BGA, CGA, QFN, QFP, PLCC, MLF and Flip Chip
• On-the-Fly Thermal Profile Management with Live Solder Joint Temperature Display
  Enables operators to build successful thermal profiles in minimal attempts
• 550W Top Reflow Heater with Variable Airflow
  Focuses convection heat to the targeted component without reflowing other nearby parts
• 2800W Bottom Pre-Heater
  Dual-zone convection heating simultaneously warms a wide area of the PCB and a focused region directly underneath the targeted component
• Dual HD Camera with 6 Digital Zoom Levels and Diffused LED Lighting
  Outputs high-resolution, shadow-free images of the component’s terminals and its PCB footprint for easy alignment
• 25 mm x 25 mm Field-of-View with 1080p Resolution on All Zoom Levels
  Increases the visibility needed for high density PCB rework applications
• Motorized Placement Head with ±0.025 mm Accuracy and Force Feedback
  Enables the placement head to accurately pick and place components without disturbing its construction or solder
• Workbench Sized System with 200-240VAC Voltage Input
  Encases the CPU, pumps and compressors into a single enclosure and operates with standard electrical systems
• 12 Different Language Settings
  Provides worldwide operator flexibility
• APR-SRS-UK2 IR Pre-Heat Sensor Accessory
  Sets a targeted pre-heat temperature for the PCB to reach prior to starting the thermal profile for consistent start temperatures no matter the environment
• APR-SRS-UK3 Side-View Camera Accessory
  Outputs a live image of the solder’s reflow to aid the building of successful thermal profiles
• Scorpion Rework System Product Overview
  Click here to download the PowerPoint
• NIST Calibrated with Certificate Included
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of APR products, see Calibration.
• TÜV SÜD Safety Certified
  Complies with UL, CSA, and CE standards
• Made in the United States of America
  This item is made and stocked in Chino, CA.

U.S. Patents 6,897,410; 9,265,186
