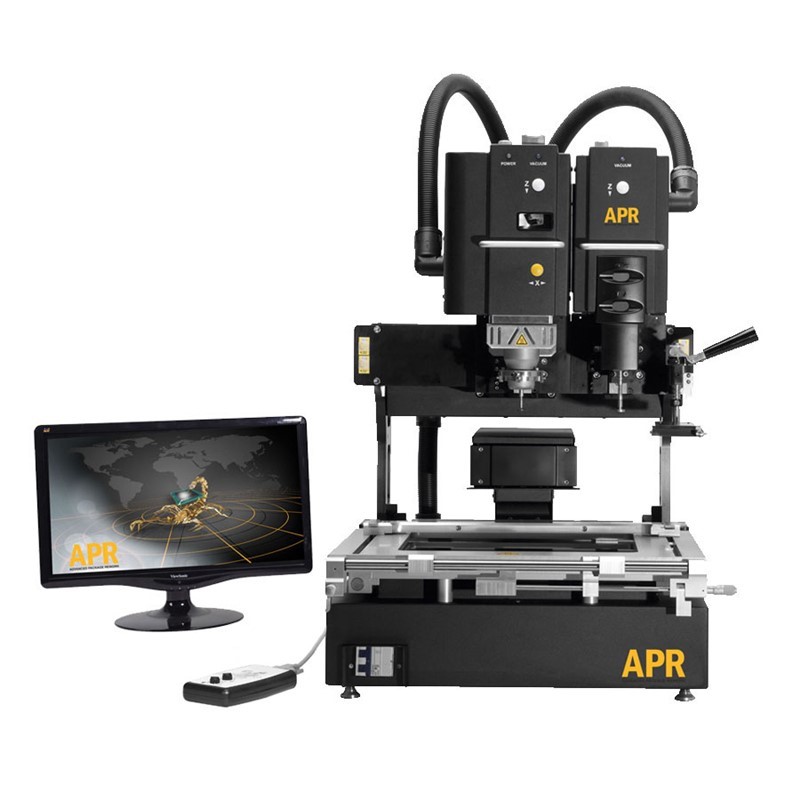

SCORPION REWORK SYSTEM, WITH MANUAL PLACEMENT HEAD, FOR HIGH DENSITY BOARDS
SKU: APR-1200-SRS-MOB
You Pay
$43,090.00
Lead Time
4 - 5 Weeks
Currency
Product Highlights
Contact APR Customer Service to schedule an online demo of the Scorpion Rework System
- SMD Rework System
Desolders, places and solders many types of surface mounted devices including BGA, CGA, QFN, QFP, PLCC, MLF and Flip Chip - On-the-Fly Thermal Profile Management with Live Solder Joint Temperature Display
Enables operators to build successful thermal profiles in minimal attempts - 550W Top Reflow Heater with Variable Airflow
Focuses convection heat to the targeted component without reflowing other nearby parts - 2800W Bottom Pre-Heater
Dual-zone convection heating simultaneously warms a wide area of the PCB and a focused region directly underneath the targeted component - Dual HD Camera with 6 Digital Zoom Levels and Diffused LED Lighting
Outputs high-resolution, shadow-free images of the component’s terminals and its PCB footprint for easy alignment - 25 mm x 25 mm Field-of-View with 1080p Resolution on All Zoom Levels
Increases the visibility needed for high density PCB rework applications - Manual Placement Head with ±0.025 mm Accuracy
Utilizes rotary knobs for Z-axis and theta control of the placement head - Workbench Sized System with 200-240VAC Voltage Input
Encases the CPU, pumps and compressors into a single enclosure and operates with standard electrical systems - 12 Different Language Settings
Provides worldwide operator flexibility - APR-SRS-UK2 IR Pre-Heat Sensor Accessory
Sets a targeted pre-heat temperature for the PCB to reach prior to starting the thermal profile for consistent start temperatures no matter the environment - APR-SRS-UK3 Side-View Camera Accessory
Outputs a live image of the solder’s reflow to aid the building of successful thermal profiles - Scorpion Rework System Product Overview
Click here to download the PowerPoint - NIST Calibrated with Certificate Included
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of APR products, see Calibration. - TÜV SÜD Safety Certified
Complies with UL, CSA, and CE standards - Made in the United States of America
This item is made and stocked in Chino, CA.
U.S. Patents 6,897,410; 9,265,186
