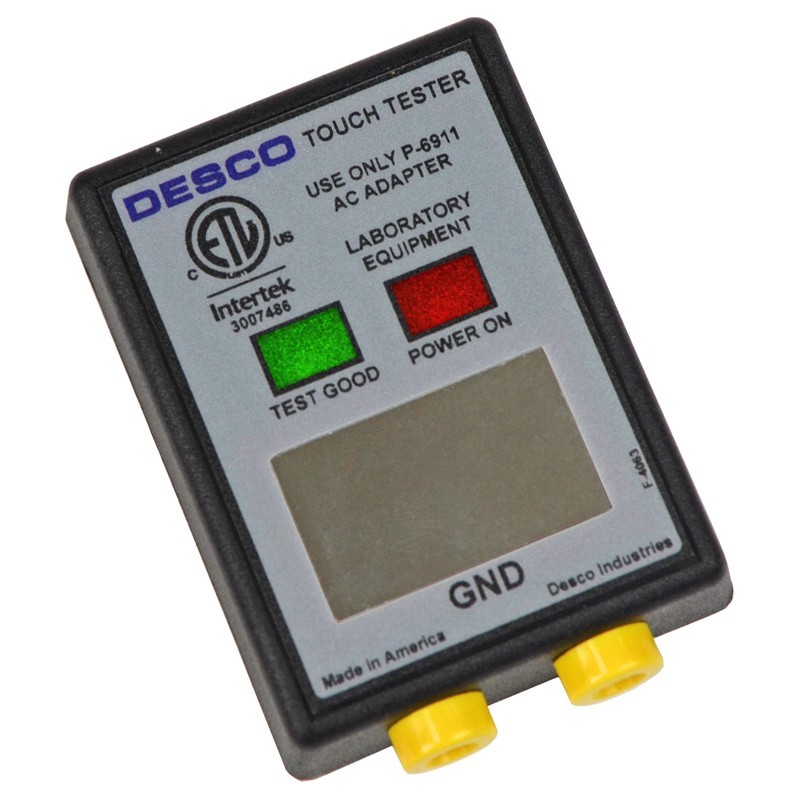

WRIST STRAP TOUCH TESTER, NORTH AMERICA

• Connects to utility ground when plugged in
  Quick, easy installation and grounding of both wrist straps and table mats.
• Tests entire circuit - wrist strap, cord and skin contact
  Reliable resistance test
• Acts as common point ground for the worksurface
  No other ground cords needed
• Test performed during normal use at workstation
  Improved productivity, workers test without having to leave the workstation
• Provided with calibration to NIST traceable standards; calibration unit available for users to maintain NIST calibration at their facility
  Simple means to assure accurate performance Lower calibration life cycle costs
• Includes Adapter
  Also available separately (98256) if replacement is required
• Range: 750 Kilohms - 10 Megohms
• NIST Calibrated Original Calibration Certificate can be Downloaded Here
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
• Made in the United States of America
  This item is made and stocked in Chino, CA

Compliance verification should be performed prior to each use (daily, shift change, etc.). The accumulation of insulative materials may increase the foot grounder system resistance. If foot grounders are worn outside the ESD protected area testing for functionality before reentry to the ESD protected area should be considered. (ESD SP9.2 APPENDIX B - Foot Grounder Usage Guidance)

A log should be maintained which verifies that personnel have tested their personal grounding devices. (ANSI/ESD S20.20 Paragraph 6.2.2.2 Personnel Grounding Guidance)

Frequency of Functional Testing: The wrist strap system should be tested daily to ensure proper electrical value. Nominally, the upper resistance reading should be < or = 10 megohms or a user-defined value. (ANSI/ESD S1.1-2006 Annex A3)
