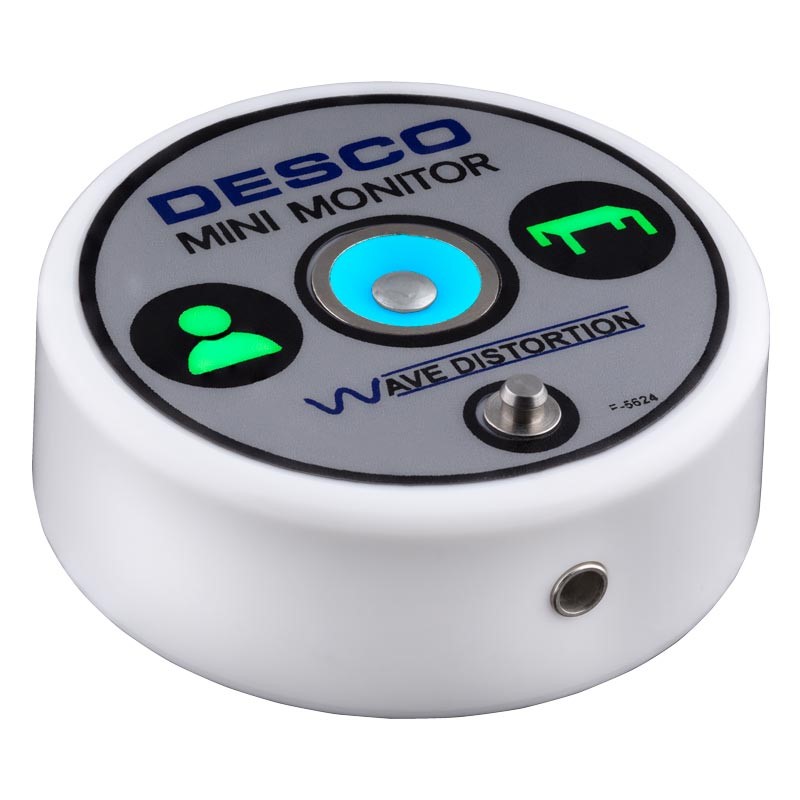

MINI MONITOR, WITH NORTH AMERICA POWER ADAPTER

• Single Workstation Continuous Monitor
  Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
• NEW Illuminated Enclosure
  Makes the status of the operator and worksurface highly visible to the operator and supervisor
• IMPROVED Continuous Visual and Audible Alarms
  Illuminates green to indicate proper grounding; illuminates red and sounds audible alarm when intermittent or failed connection occurs; illuminates blue to indicate standby mode
• NEW Park Delay Timer and ParkSnap
  Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm
• NEW Mat Monitor Switch
  Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
• NEW Audible Alarm Adjustment
  Sets the audible alarm volume from loud to louder
• Wave Distortion Technology
  Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist straps path-to-ground and the presence of its 1 megohm safety resistor
• Threaded Worksurface Grounding and Mounting
  Grounds and monitors the worksurface with no additional wire
• Single-Wire Impedance Design
  Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
• 1.2 Volt Operator Test Voltage
  Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
• <50 Millisecond Alarm Response Time
  Identifies failures and intermittencies that inferior technologies miss
• Desco 19344 Ring Magnets
  Mounts the monitor in areas without a worksurface
• Calibration Verification
  Use the Desco98221Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations
• NIST Calibrated Original Calibration Certificate can be DownloadedHere
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, seeCalibration.
• 100-240VAC Safety Certified Power Adapter with North American Plug
  Works with standard electrical systems in North America, Japan, and Asia
• Made in the United States of America
  This item is made and stocked inChino, CA

Patent pending

The ESDA Wrist Strap standard is ANSI/ESD S1.1. The Wrist Strap System required limit per ANSI/ESD S20.20 Table 3 is 0.8 to 1.2 x 10⁶ohms with product qualification testing per ANSI/ESD S1.1. The test range of the monitored circuit is 500 kilohms to 10 megohms.
