IntelliRay 600: Programmable 600W UV Flood System
SKU: UV0832
Product Highlights
- Microprocessor control of time & intensity / Remote control & reporting via PC or PLC
- Integrated exposure shutter
- 175 mW/cm2 Intensity @ 3"
- 8" x 6" curing area
- 600 W lamp / Solid-state / Constant power
- Optional shielded benchtop curing chamber

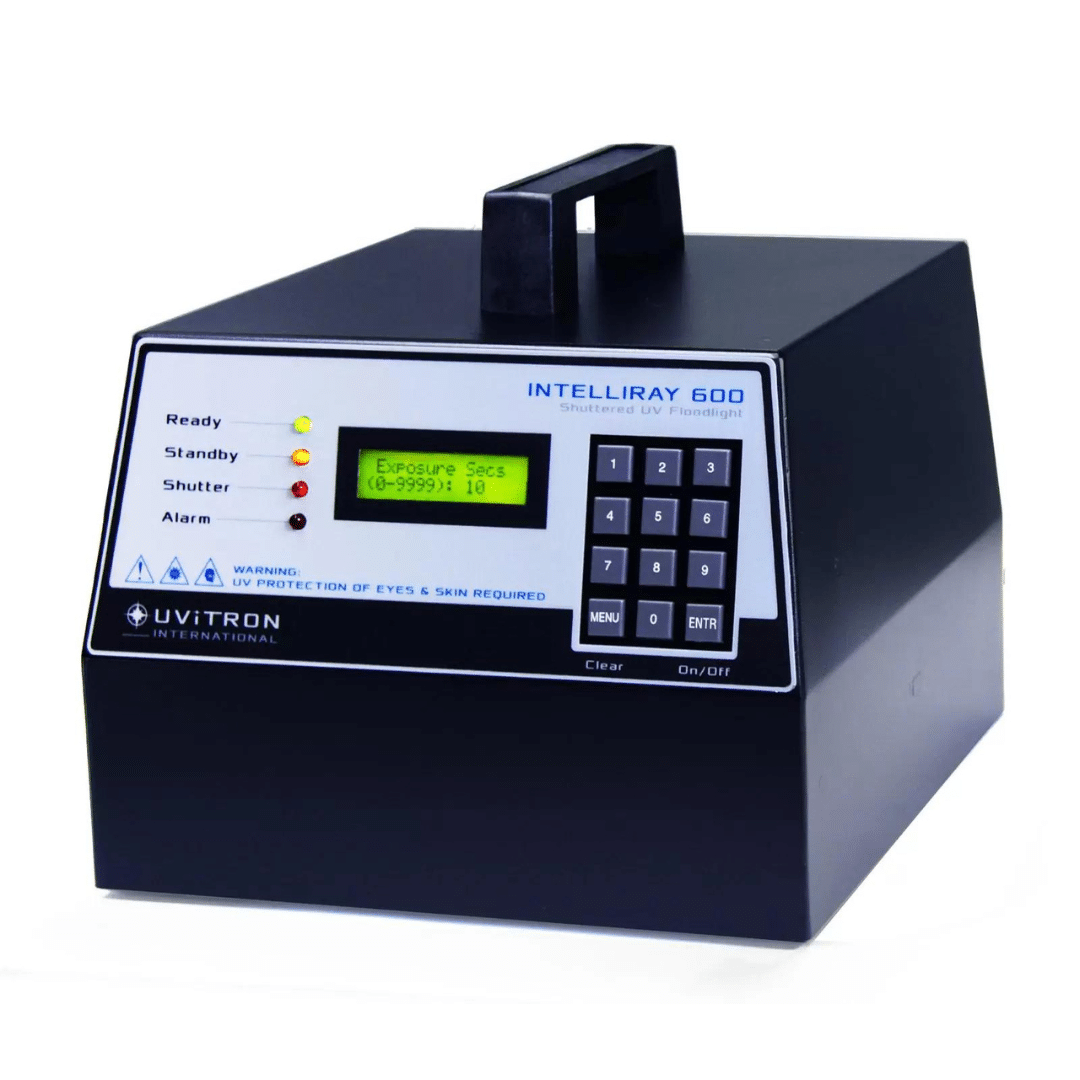

The IntelliRay is a compact microprocessor-controlled UV flood curing system. All system components are integrated into a small lamp head which can be easily mounted on the optional Rayven benchtop curing chamber or anywhere on a factory floor, with virtually no cabling or remote power boxes required. Just mount the head, connect the AC line cord, and start timed exposure curing! The system contains an integrated retractable shade type shutter, which allows for repeatable exposure timing, and shields the user from UV rays. The systems LCD display and digital keypad make programming and monitoring of curing operations a snap. The long life 400 watt arc lamp and parabolic reflector illuminate an 8 x 6 inch curing area with evenly distributed UV light. The arc lamp is powered by the state of the art UV Power-Plus Lamp Driver. The head features a convenient carrying handle and sliding height adjustment bracket.
