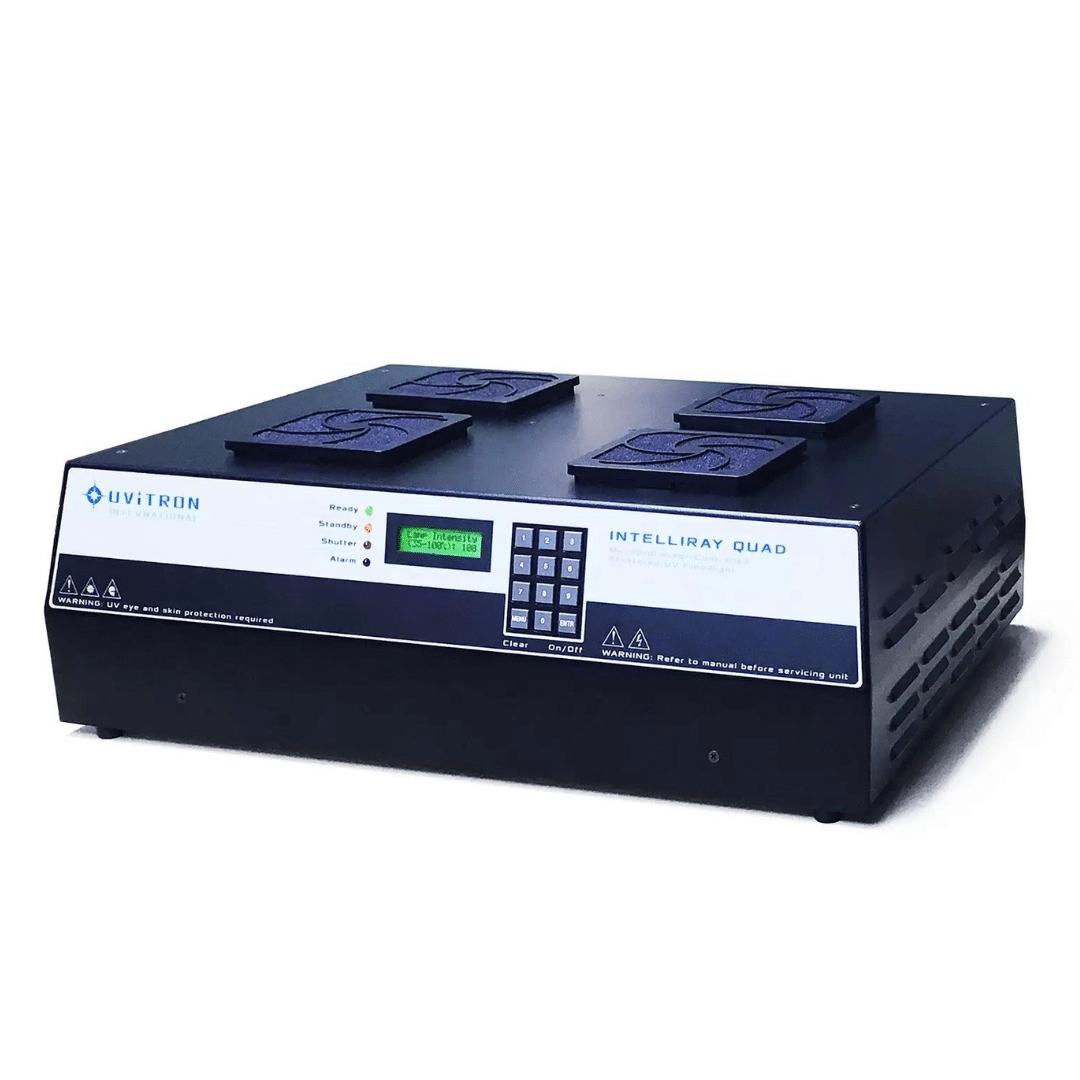

IntelliRay Quad: Large Area UV Flood Curing System
SKU: UV2591
Product Highlights
- Microprocessor control of time & intensity / Remote control via PC or PLC
- 4 long-life arc lamps with integrated exposure shutter
- 110 mW/cm2 Intensity @ 4"
- Large 16" x 12" curing area (4x larger than standard IntelliRay)
- Solid-state / Constant power
- Optional shielded benchtop curing chamber
The IntelliRay Quad is a large area microprocessor-controlled UV flood curing system. All system components are integrated into a single unit that can be easily mounted on the optional Rayven Quad benchtop curing chamber, or anywhere on a factory floor, with virtually no cabling or remote power boxes required. Just mount the lamp head, connect the AC line cord, and start timed exposure curing! The system contains an integrated retractable shade type shutter, which allows for repeatable exposure timing, and shields the user from UV rays. The systems LCD display and digital keypad make programming and monitoring of curing operations a snap. The 4 long-life arc lamps and parabolic reflectors illuminate a 16 x 12 inch curing area with evenly distributed UV light. The arc lamps are powered by the state of the art UV Power-Plus Lamp Driver.
