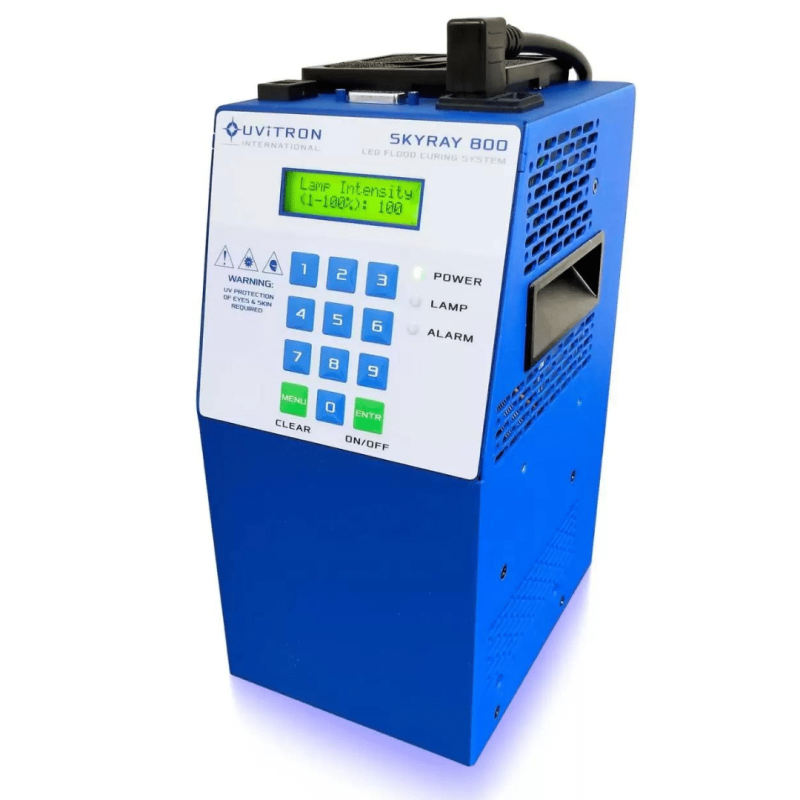

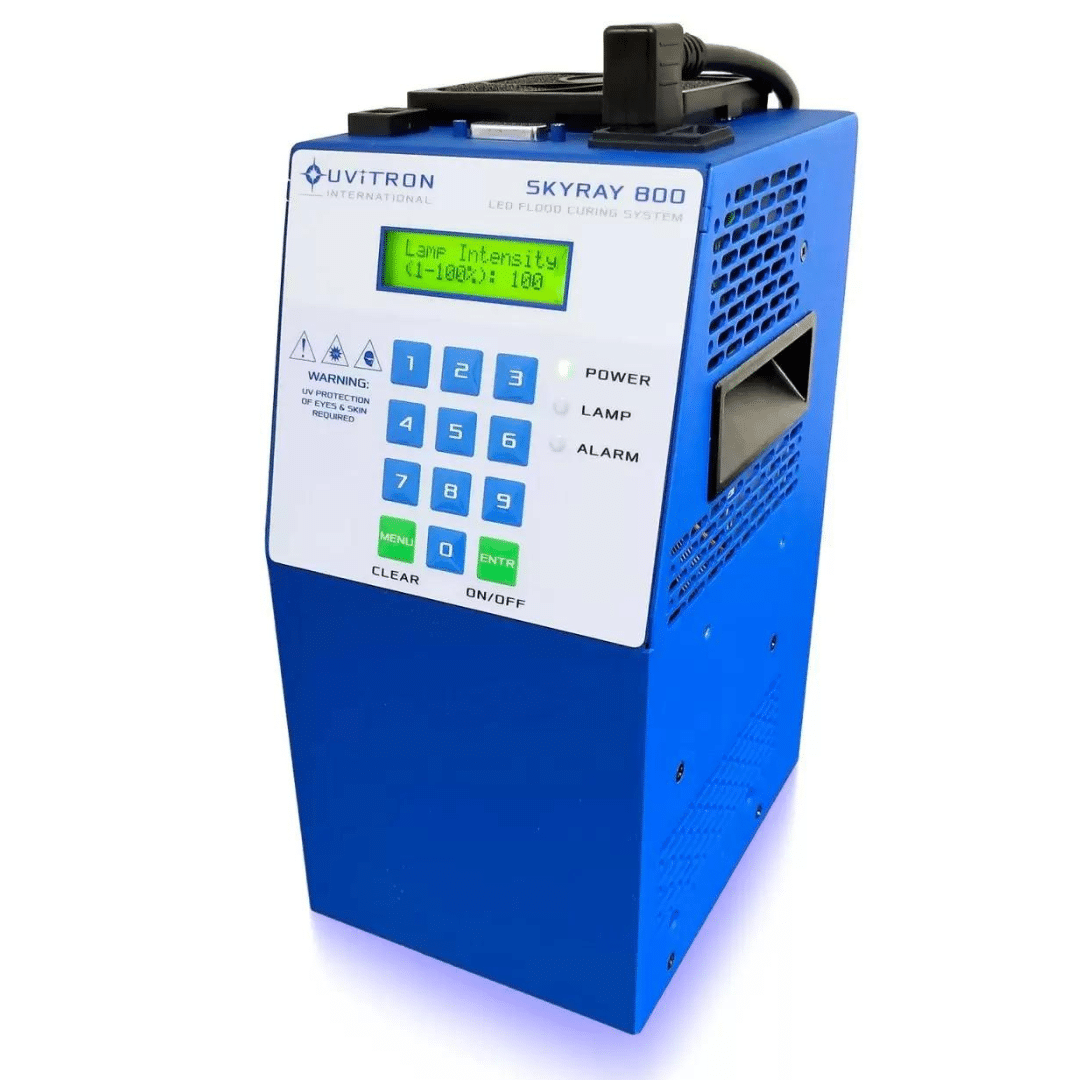

SkyRay 800: 395 nm LED UV Flood System
SKU: UV3937
Product Highlights
- Curing area: 5" x 5"
- Up to 2200 mW/cm2 Intensity @ 1"
- 395 nm Cool-output Long-life LEDs
- Microprocessor control of time & intensity / Remote control & reporting via PC or PLC
- Integrated Lamp head, power supply and controller
- Optional shielded Rayven curing chamber
The SkyRay 800 is a compact microprocessor-controlled LED flood curing system. The SkyRay integrates all system components into a small lamp head which can be easily mounted anywhere on a factory floor, with no remote controller, power supply box or remote cooler required. Just mount the head, connect the AC power cord and start timed exposure curing! The long life solid-state LEDs illuminate a 5x5 inch curing area with cool and evenly distributed high intensity light. The system features an integrated exposure timer and adjustable output intensity. The front panel LCD display and sealed membrane type keypad make programming and monitoring of curing operations a snap. System dose and setup parameters feature password protection to prevent unauthorized changes to sensitive process and control settings. The unit features a variable speed cooling fan and convenient flush-mounted carrying handles. The enclosures slim design allows for side-by-side mounting of multiple units for exposure of larger curing areas.
