WS AWARE MONITOR, WITH BIG BROTHER REMOTES, ETHERNET OUTPUT

WS AWARE MONITOR, WITH BIG BROTHER REMOTES, ETHERNET OUTPUT

SKU: 770068
You Pay $1,068.22
Lead Time
4-6 Weeks for non-stocked items, Call for stock inquiries.
Currency
Product Highlights
  • NEW SCS 770069 Power Relay Compatibility
    Controls power to workbenches, hand tools, and other electronic devices dependent on the WS Aware Monitor’s status
  • Dual Workstation Continuous Monitor
    Continuously monitors the path-to-ground integrity of two operators, two conductive or dissipative worksurfaces, and two metal tools; meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01.
  • Ethernet Connectivity
    Provides network communication with Static Management Program (SMP). Data collected through SMP includes operator resistance, operator voltage, mat resistance, metal tool impedance and metal tool EMI voltage.
  • Digital Signal Processing Technology
    Applies an ultra-low test voltage to the operator (0.05V) for the handling of sensitive components.
    Operator Body Voltage Detection
    Alarms if the operator generates or contacts voltage that would be dangerous to an ESD susceptible item.
  • EMI Monitoring on Metal Grounds
    Alarms if the grounded metal tools have high-frequency noise that could cause electrical overstress (EOS) damage.

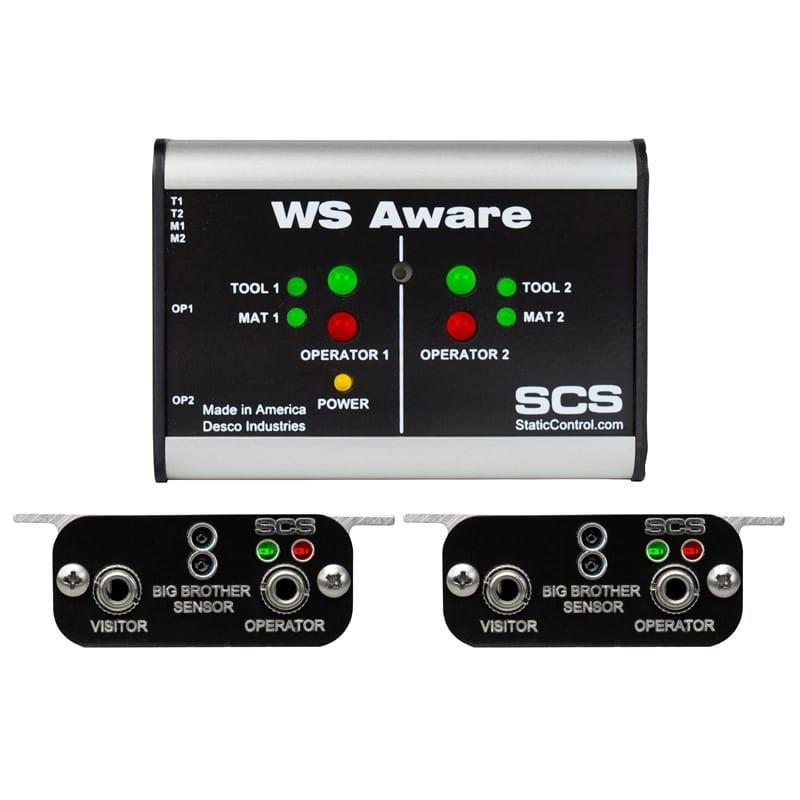

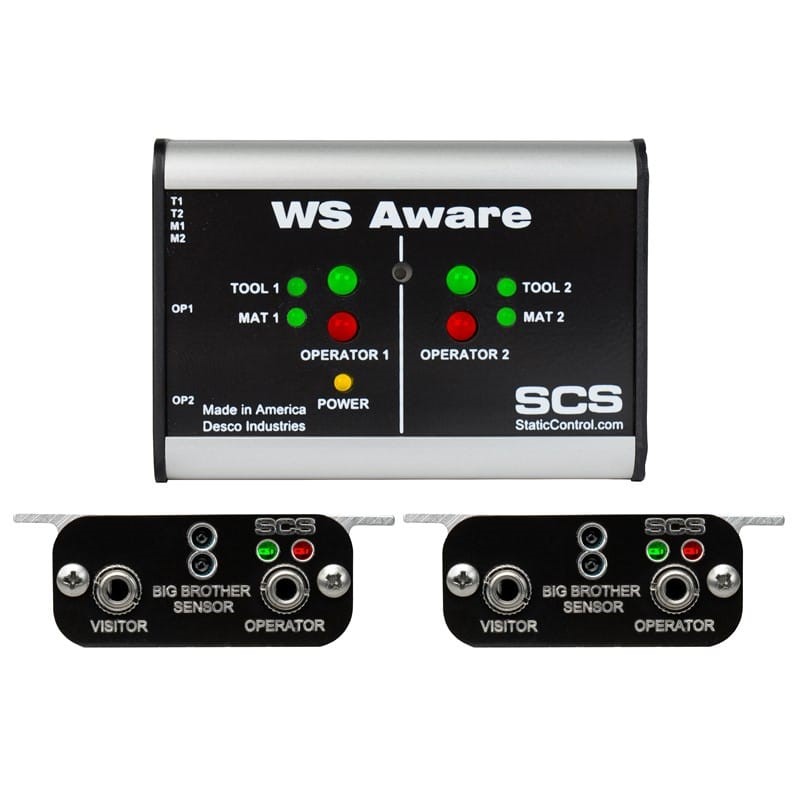

  • System Includes Monitor and Two Remote Terminals
    Monitor can be installed at eye level, and remote terminals can be mounted at desired locations up to 10 feet away. Each remote terminal includes a monitored jack for operators and an unmonitored jack for visitors.
  • Remote Terminals with Big Brother Sensor
    Detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items
  • Use with Dual-Wire Wrist Straps
    See SCS Dual-Wire Wrist Straps.
  • Replaceable Dual-Wire Operator Jack
    Use the CTA245 Replacement Jack PCB to easily replace the operator jack without the use of solder.
  • Calibration Unit Available for Accurate Performance and Conformity Testing in the Field
    See SCS item CTE701.
  • NIST Calibrated with Certificate Included
    Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of SCS products, see Calibration.
  • 100-240VAC Power Adapter with Interchangeable Plugs
    Works with standard electrical systems in North America, United Kingdom, Japan, Asia and Europe.
  • Made in the United States of America
    This item is made and stocked in Chino, CA.

    U.S. Patents 6,930,612; 9,983,251
