EOS/ESD ASSESSMENT KIT

SKU: 770045

You Pay $11,766.77

Lead Time

4-6 Weeks for non-stocked items, Call for stock inquiries.

Currency

Product Highlights

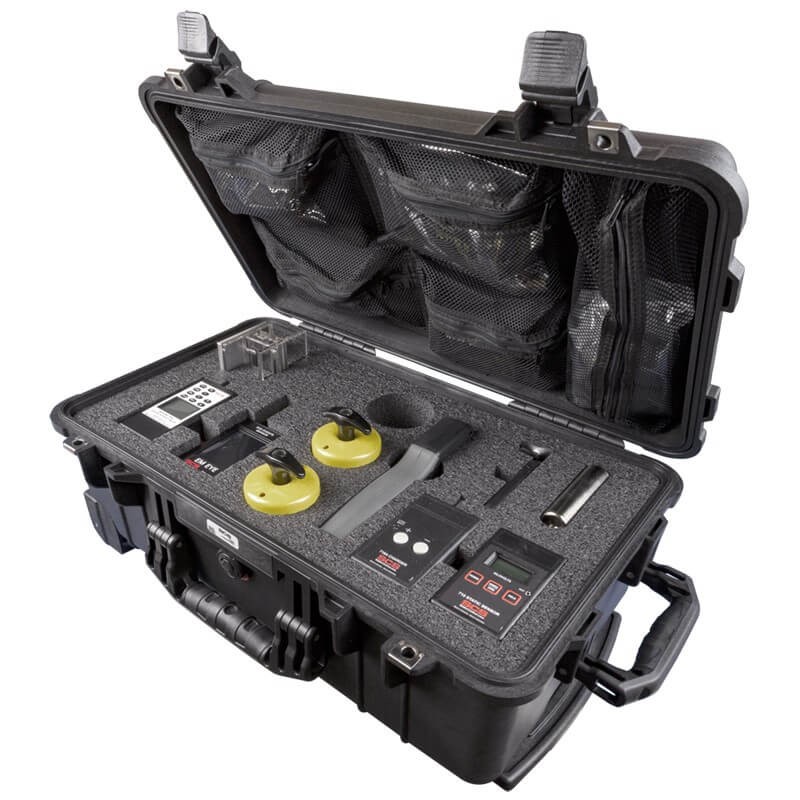

SCS EOS/ESD Assessment Survey Kit
Use to measure, verify and qualify products for use in the ESD Protected Area in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and other documents.
Kit Includes
- 770760 Resistance Pro Meter Kit
  Measures resistance point-to-point (Rtt) or surface-to-ground (Rtg)
- 770765 Handheld Electrode
  Meets resistance measurement requirements of TR53 and ANSI/ESD STM97.1
- CTM048-21 EM Eye – ESD Event Meter
  Detects, counts and measures ESD events that can damage ESD items and cause tool lock-ups, erratic behavior and parametric errors
- CTM051 Ground Pro Meter
  Confirms that an AC electrical outlet’s wiring is correct and the path to equipment ground conductor (the green wire) is intact and to measure ground impedance in accordance with ANSI/ESD S6.1 and ANSI/ESD S20.20 required limits
- 770718 Air Ionizer Test Kit
  Measures electrostatic fields, offset voltage (balance) and charge decay of ionization equipment
- ESD Training Paddles Set
  Demonstrates the creation and polarity of electrostatic charges and the functionality of ESD control products
Sold Separately
- 770007 Concentric Ring Probe
  Measures surface resistance per ANSI/ESD STM11.11 and volume resistance per ANSI/ESD STM11.12 of planar material
Pelican 1510 Carry-On Case with Lid Organizer and Foam Insert
Protects and stores test equipment; meets carry-on luggage size restrictions
NIST Calibrated with Certificate
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on calibration of SCS products, see Calibration.
Made in the United States of America
This item is made and stocked in Chino, CA
